1/2" disc thermostats with manually activated reset. Quick make/quick break switching action. An electrically isolated bimetal disc is used to either open the circuit current.
GENERAL

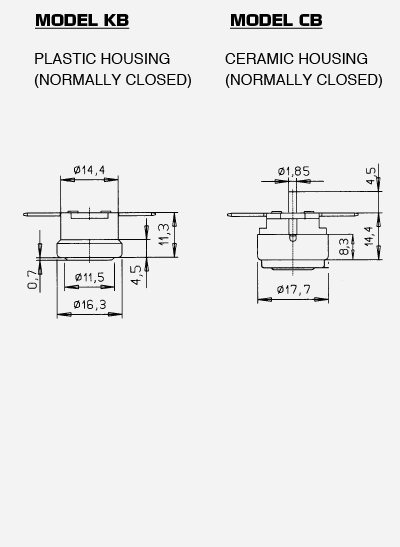

Models KB & CB
Available with nominal calibration temperatures of -35º C to 200º C. Other temperatures available upon request.
Manual Reset
Thermostats must be manually reset once activate
CONTACT RATINGS
Model KB
UL:
16 amps 250 VAC, 6,000 cycles
VDE:
10 amps 250 VAC 3,000 cycles
16 amps 250 VAC 1,000 cycles
Model CB
VDE:
16 ampls 250 VAC 10,000 cycles
16 amps 400 VAC 1,000 cycles
