Function

Temperature Control
Over-Temperature Protector

Design

Normally Closed

Load:

Resistive
Inductive

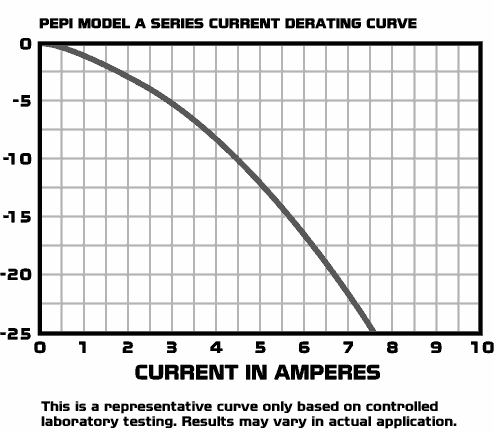

Derating CurveDerating Curve
Contact RatingsContact Ratings
Pages PDFPages PDF

A creep-action thermostat with crimp connections for fast, easy termination.  Available in same end (Model A) or opposite (Model AA) termination.  Designed for use on low-current 120 VAC loads.

FEATURES

  • Conductive bimetal construction; the bimetallic element carries the circuit current.
  • Creep action device; slow make/slow break switching action.
  • No built-in differential between the opening and closing temperature.
  • Case electrically alive; insulating sleeving is available.
  • Preset calibration temperature; not adjustable in the field.

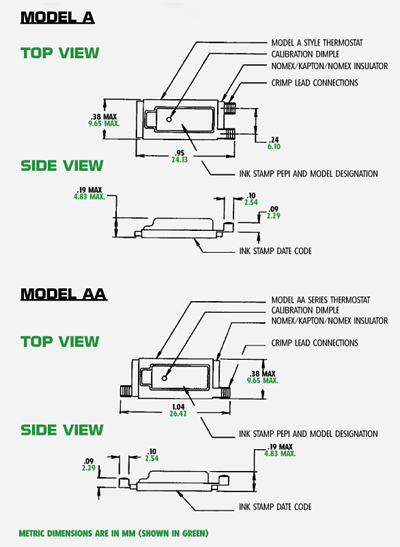

  • Available with same end termination, Model A; or opposite end termination, Model AA.
  • Available with factory applied lead wires.

CONTACT RATINGS

  • 3 amps 120 VAC resistive
  • 4 amps 120 VAC inductive
  • 2 amps 120 VAC resistive (heating pads)

CALIBRATION RANGE

Available with nominal calibration temperatures from 5° C to 150° C.
